SHARE SLAM S20 Standard

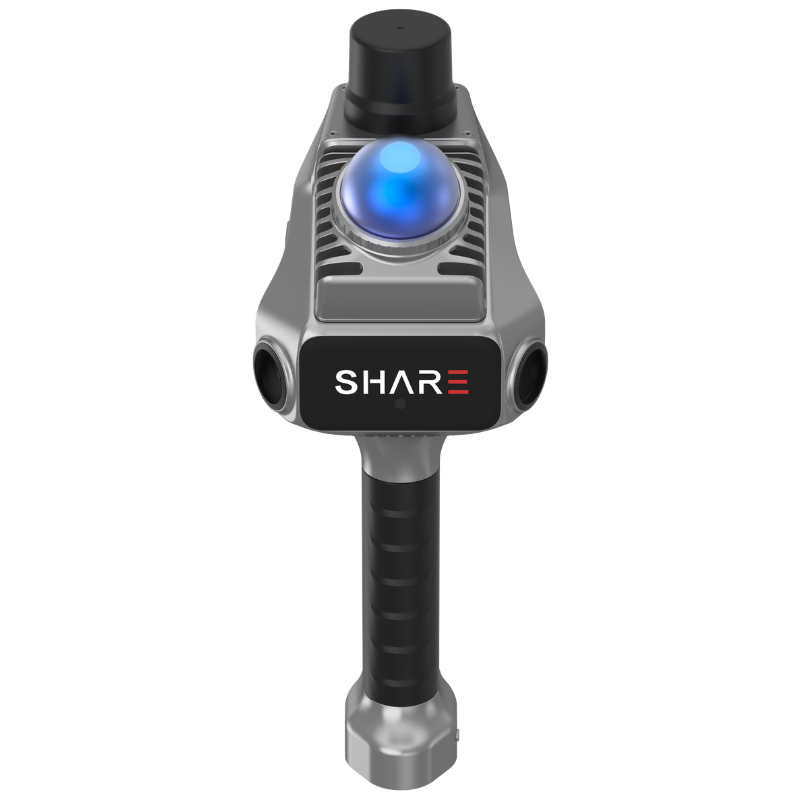

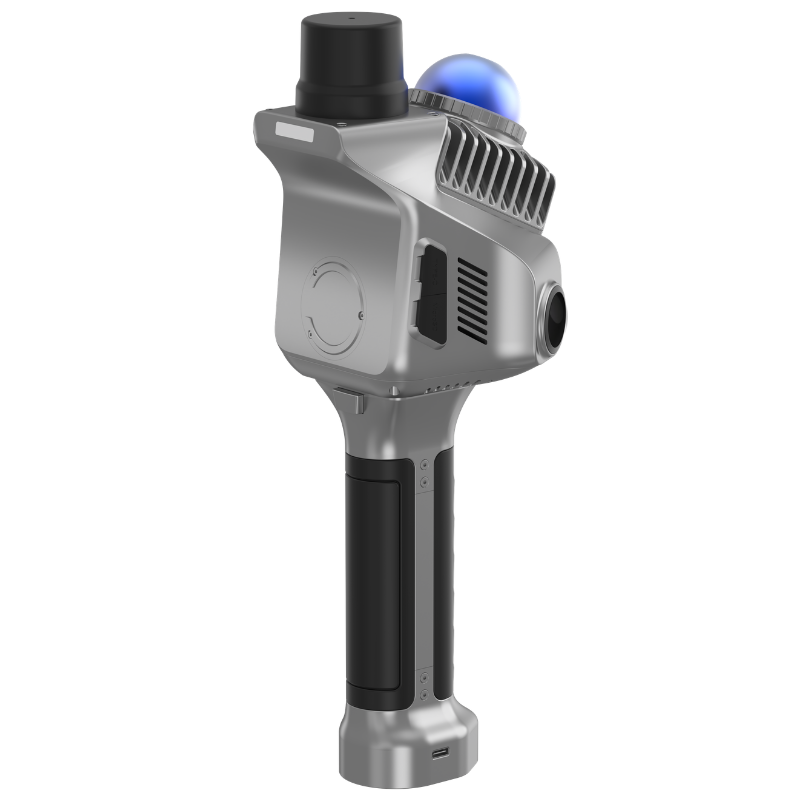

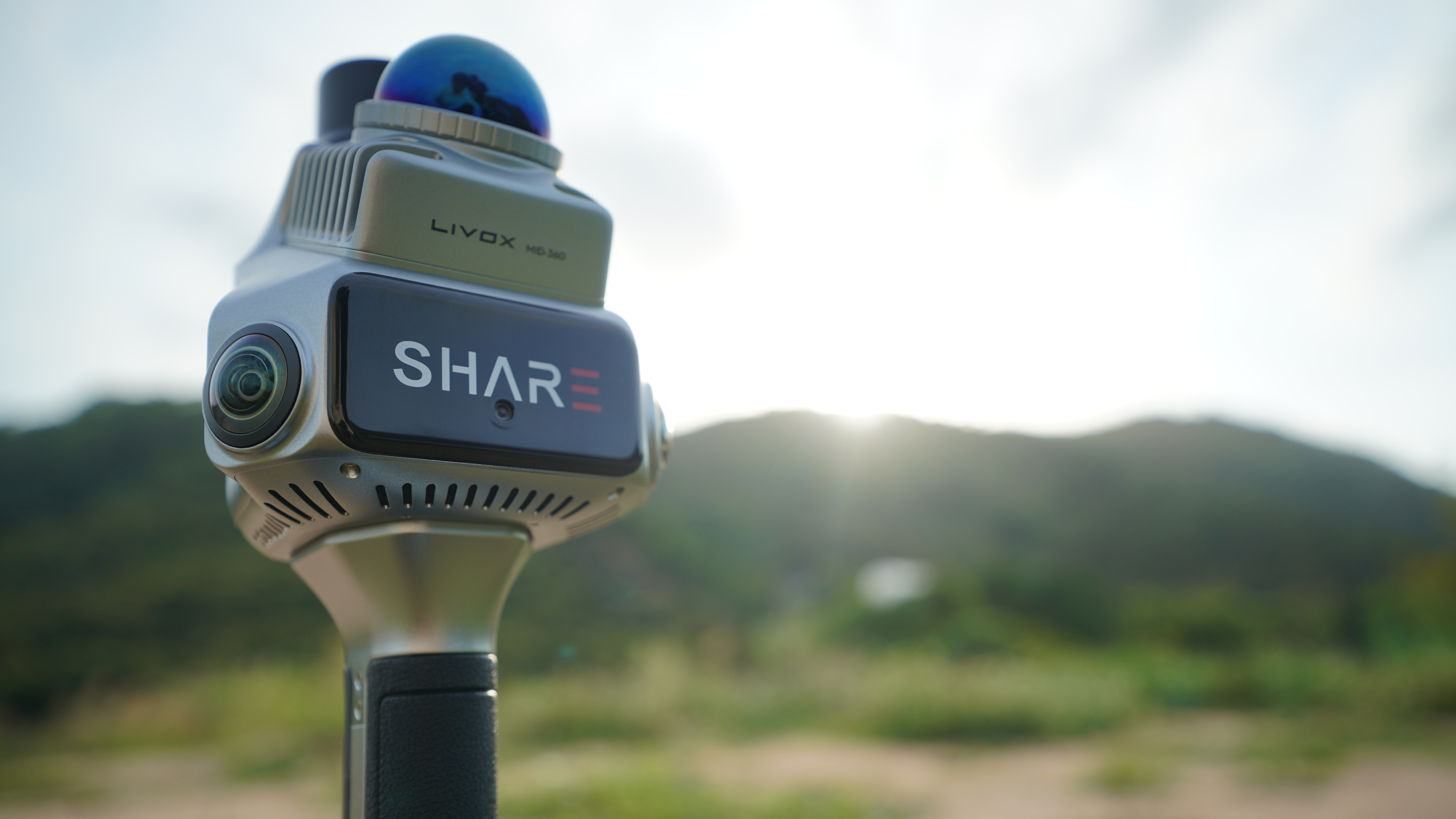

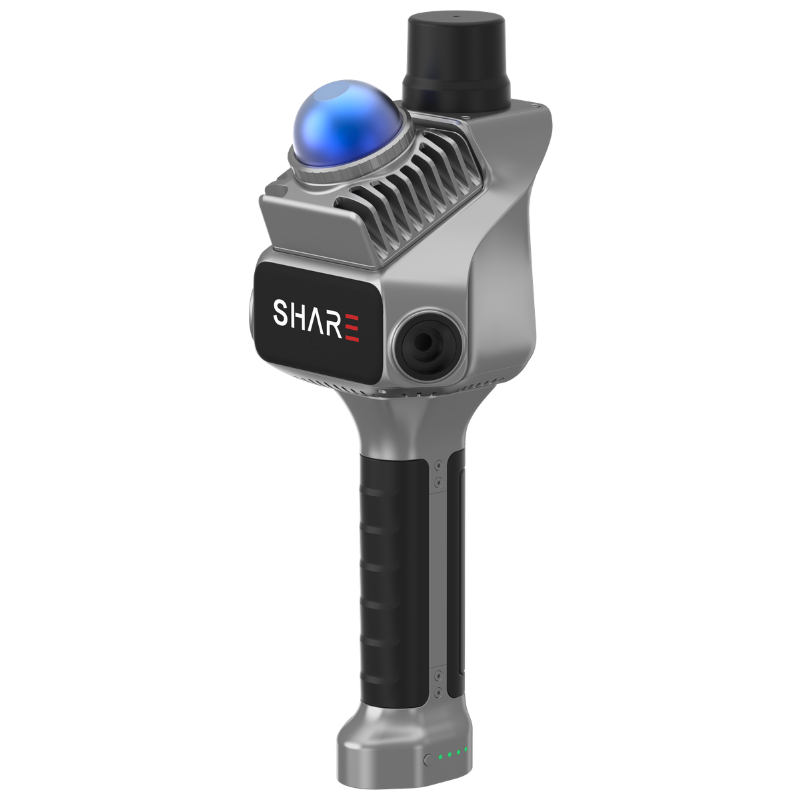

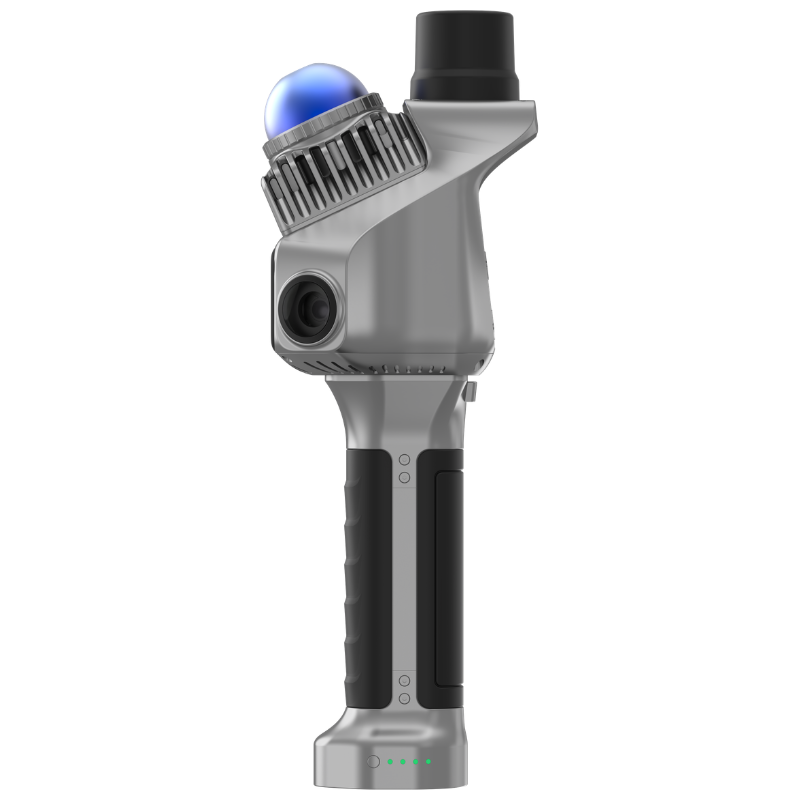

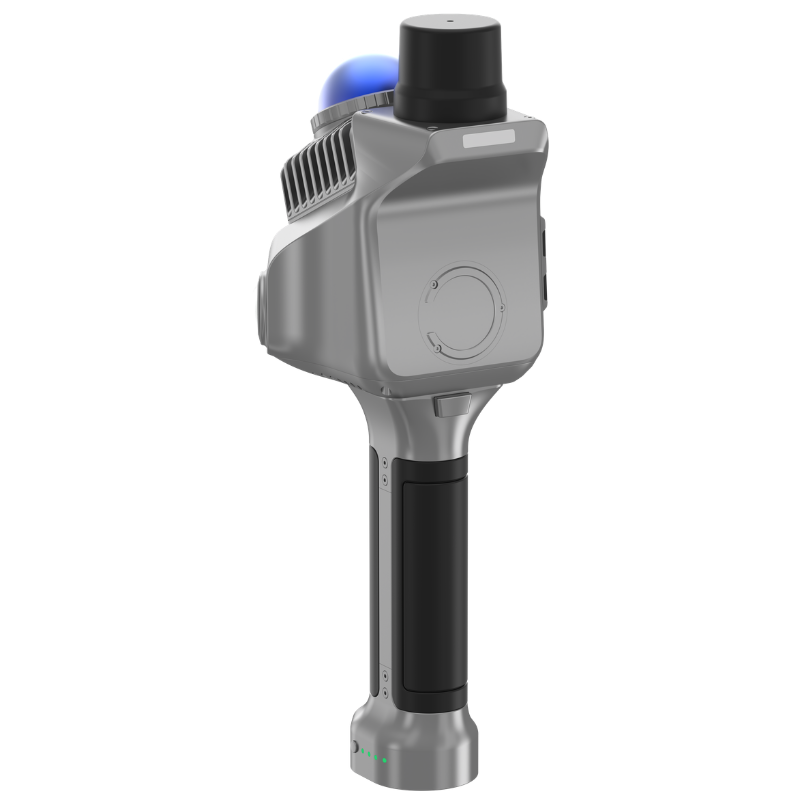

Share S20 - Handheld LiDAR Scanner with RTK & Visual SLAM
The Share S20 is a professional handheld LiDAR scanner built for surveyors, engineers, and AEC professionals who need high-accuracy 3D point clouds without the setup time of traditional methods. Walk a site, capture it in real time, and leave with colourised, georeferenced data ready for processing.
Dual one-inch CMOS sensors with mechanical shutters - 16 megapixels per lens, 32MP total - deliver crisp, true-colour point cloud colouring without the jelly effect common in rolling-shutter systems. Microsecond hardware time synchronisation between LiDAR and camera means colour and geometry align precisely, giving you intensity and colour point clouds that match cleanly.
Where the S20 genuinely stands apart is in its dual SLAM approach. LiDAR SLAM handles the majority of environments, while the built-in Visual SLAM camera takes over in scenarios where laser SLAM typically degrades - tunnels, underground utilities, low-feature spaces, and mining environments. The result is consistent, reliable positioning in the kind of sites that catch other scanners out.
Integrated RTK provides georeferenced absolute accuracy to within 5cm, with the upgraded antenna offering faster fixed-solution acquisition and stronger resistance to interference. No external modules, no extra setup - it's built in.
The S20 ships with SHARE PointClouds Studio for post-processing, alongside the SHARE Capture mobile app for real-time preview and control. Data exports in PLY, LAS, and PCD formats for straightforward integration with your existing CAD, BIM, or GIS workflows.
Key Specifications
- Point cloud thickness ≤ 1 cm
- Relative accuracy ≤ 1 cm
- Absolute accuracy ≤ 5 cm (with RTK)
- Dual 1-inch CMOS sensors, 2× 16MP, mechanical shutters
- LiDAR SLAM + Visual SLAM fusion
- Integrated RTK (no external antenna required)
- Battery runtime: up to 150 minutes
- Storage: 256 GB (SD expandable)
- Weight: approx. 1.08 kg
- Export formats: PLY, LAS, PCD
- Includes: SHARE PointClouds Studio (PC) + SHARE Capture App (iOS & Android)
Typical Applications
Topographic survey, tunnel and utility surveying, stockpile measurement, facade capture, as-built documentation, cultural heritage, infrastructure inspection.
